Shaft Coupling

Shaft Coupling

– Precision CNC Machined Couplings for Reliable Power Transmission

     The Shaft Coupling, a high-precision mechanical component designed to connect two shafts and transmit torque efficiently while compensating for misalignment. Engineered for stability, durability, and accuracy, our couplings ensure smooth rotation and reduced vibration across a wide range of industrial and automation applications.

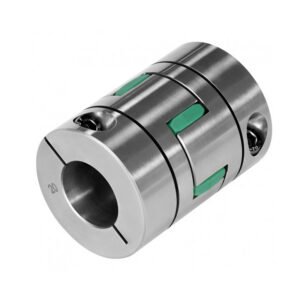

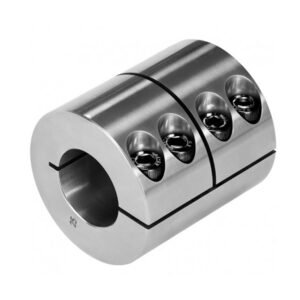

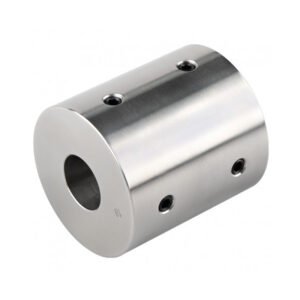

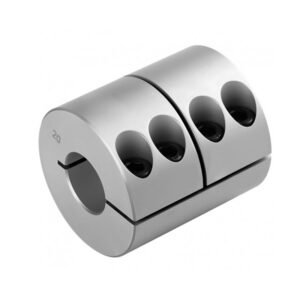

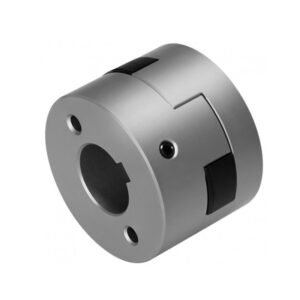

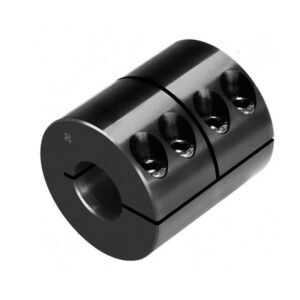

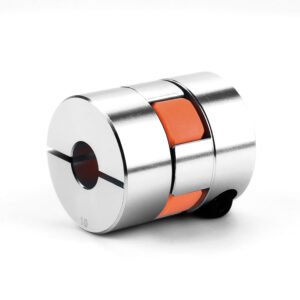

Manufactured using advanced CNC machining processes, these shaft couplings deliver excellent concentricity, tight tolerances, and consistent performance. Available in multiple types—such as rigid couplings, flexible couplings, jaw couplings, and helical (beam) couplings—they are designed to accommodate various alignment and load requirements.

Constructed from premium materials including aluminum alloy, carbon steel, and stainless steel, our shaft couplings offer outstanding strength, corrosion resistance, and long service life even under demanding operating conditions.

Key Features

• Efficient Torque Transmission: Ensures stable and reliable power transfer
• Misalignment Compensation: Accommodates angular, parallel, and axial misalignment (flexible types)
• High Precision Machining: Guarantees accurate shaft alignment and rotation
• Low Vibration & Noise: Smooth operation for sensitive applications
• Multiple Coupling Types: Rigid, flexible, jaw, and helical designs available
• Durable Construction: مقاوم to wear, fatigue, and corrosion

Applications

• CNC machines and automation systems
• Servo motors and stepper motor drives
• Robotics and precision equipment
• Pumps, compressors, and gearboxes
• Packaging and conveyor machinery

Manufacturing Process

• CNC Precision Machining (turning, milling, and contour shaping)
• Precision Boring (for accurate shaft fit)
• Slot Cutting / Helical Machining (for flexible coupling designs)
• Thread Tapping (for set screws or clamp mechanisms)
• Heat Treatment (for enhanced strength and fatigue resistance, steel types)
• Surface Finishing (deburring and polishing)
• Surface Treatment (anodizing, black oxide, or plating)
• Dynamic Balancing (for high-speed applications, optional)
• Final Inspection (concentricity, runout, and torque testing)

Tolerance & Dimensions

• Bore Diameter Tolerance: H7 / ±0.01–0.02 mm
• Concentricity: ≤0.02 mm
• Runout: ≤0.02 mm
• Parallelism: ≤0.02 mm
• Torque Capacity Tolerance: Engineered per application requirements
• Dimensional Tolerance: ±0.02–0.05 mm

OEM / ODM Manufacturing Capability

As a professional OEM/ODM manufacturer, we specialize in precision CNC machined transmission components for industrial and automation systems. With advanced production technology and strict quality control, we provide customized shaft coupling solutions tailored to your performance and application needs.

• Custom bore sizes and shaft configurations
• Multiple coupling designs for different alignment requirements
• Material selection based on torque and environment
• Surface treatment customization for durability and corrosion resistance
• Logo engraving and private labeling
• Rapid prototyping and large-scale production

If you are sourcing a “Shaft Coupling”, flexible coupling, rigid coupling, CNC shaft coupling, motor coupling, beam coupling, jaw coupling, precision coupling OEM，we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
