Custom Carbon Fiber Elbow Tubes

-OEM/ODM Carbon Fiber Bends Manufacturer

Lightweight, High-Strength Carbon Fiber Elbow Tubes for Custom Applications

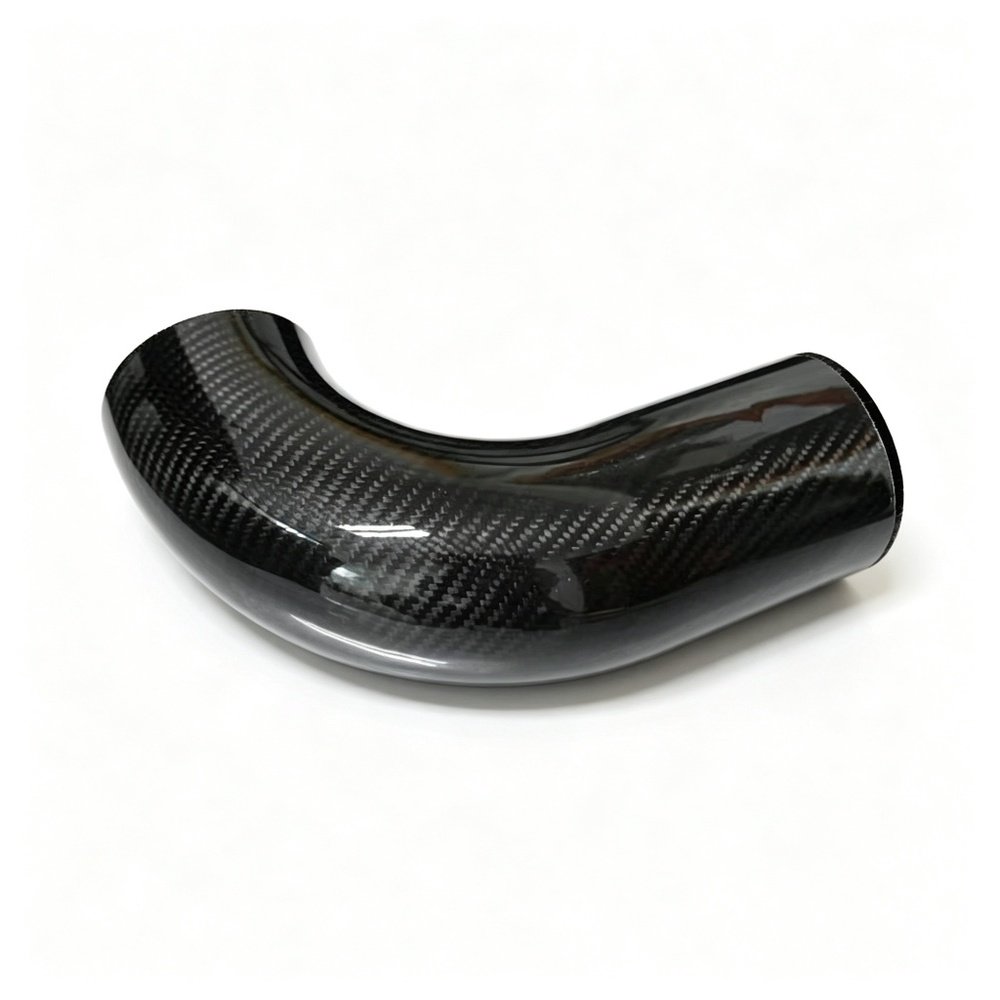

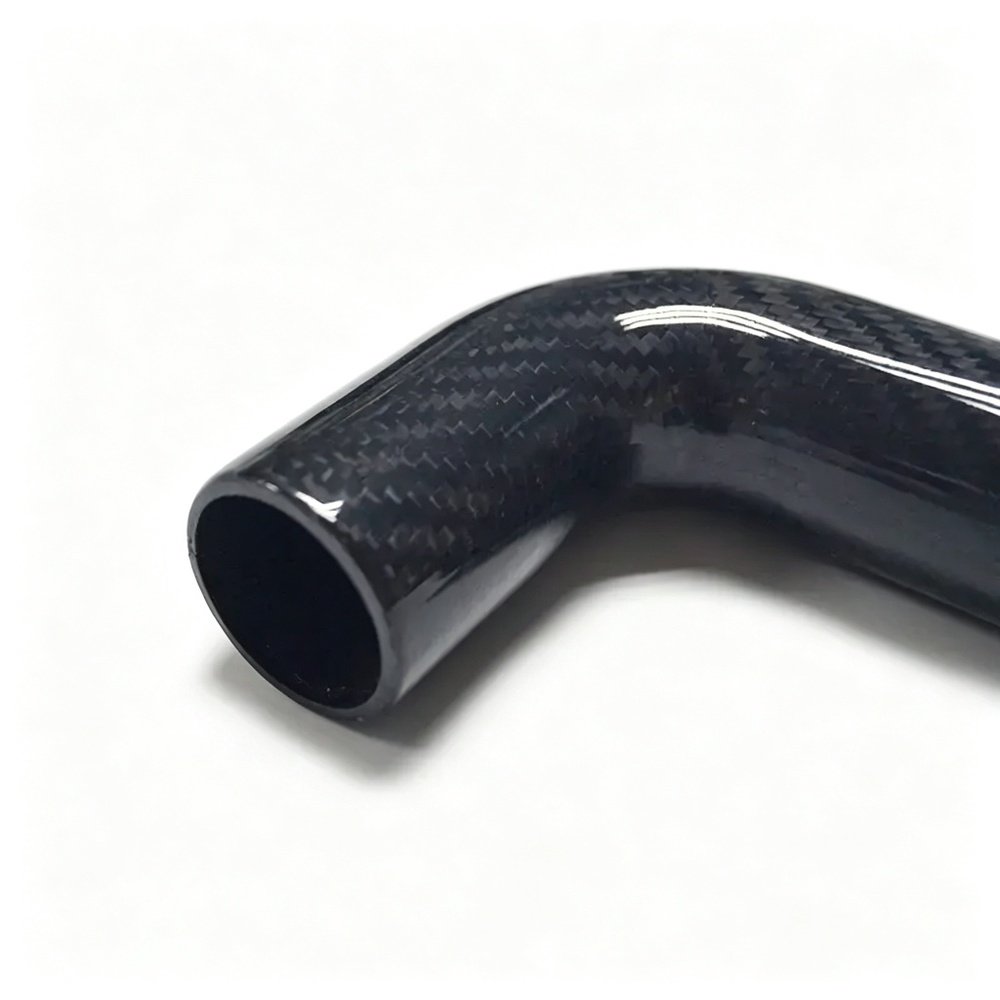

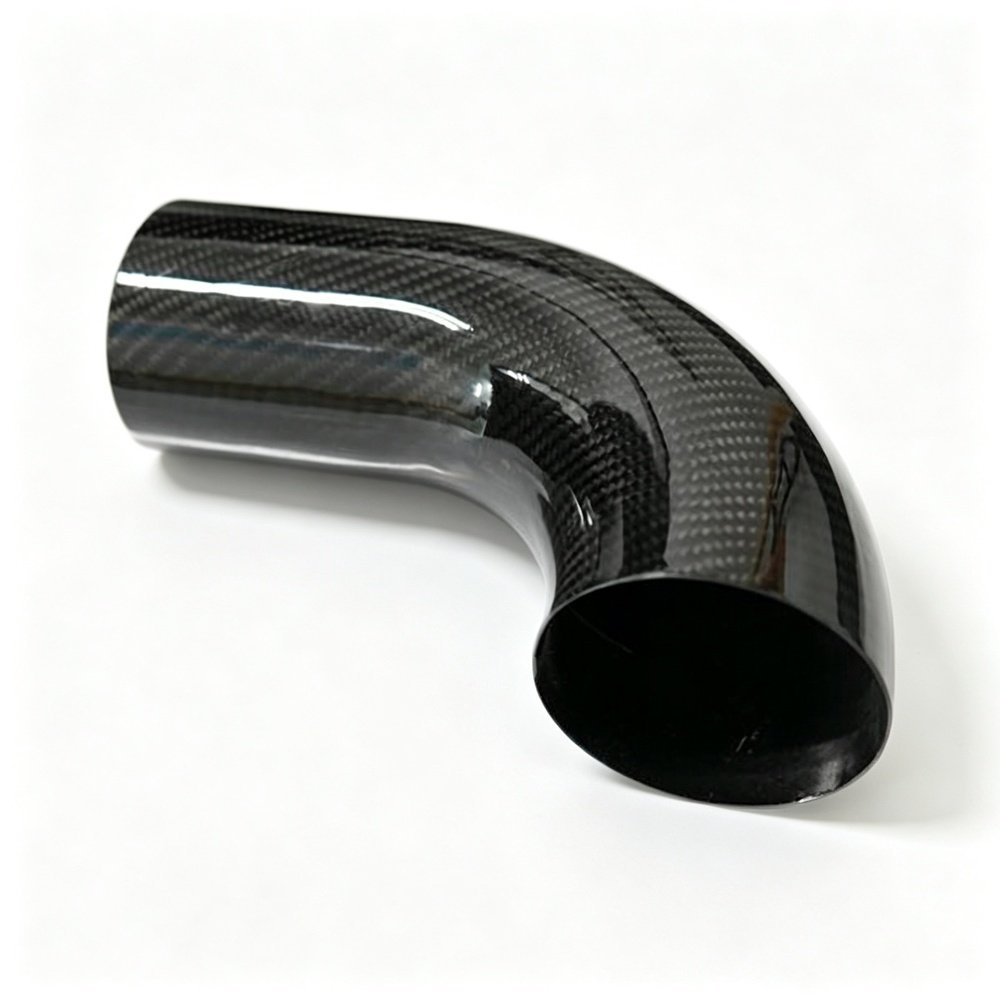

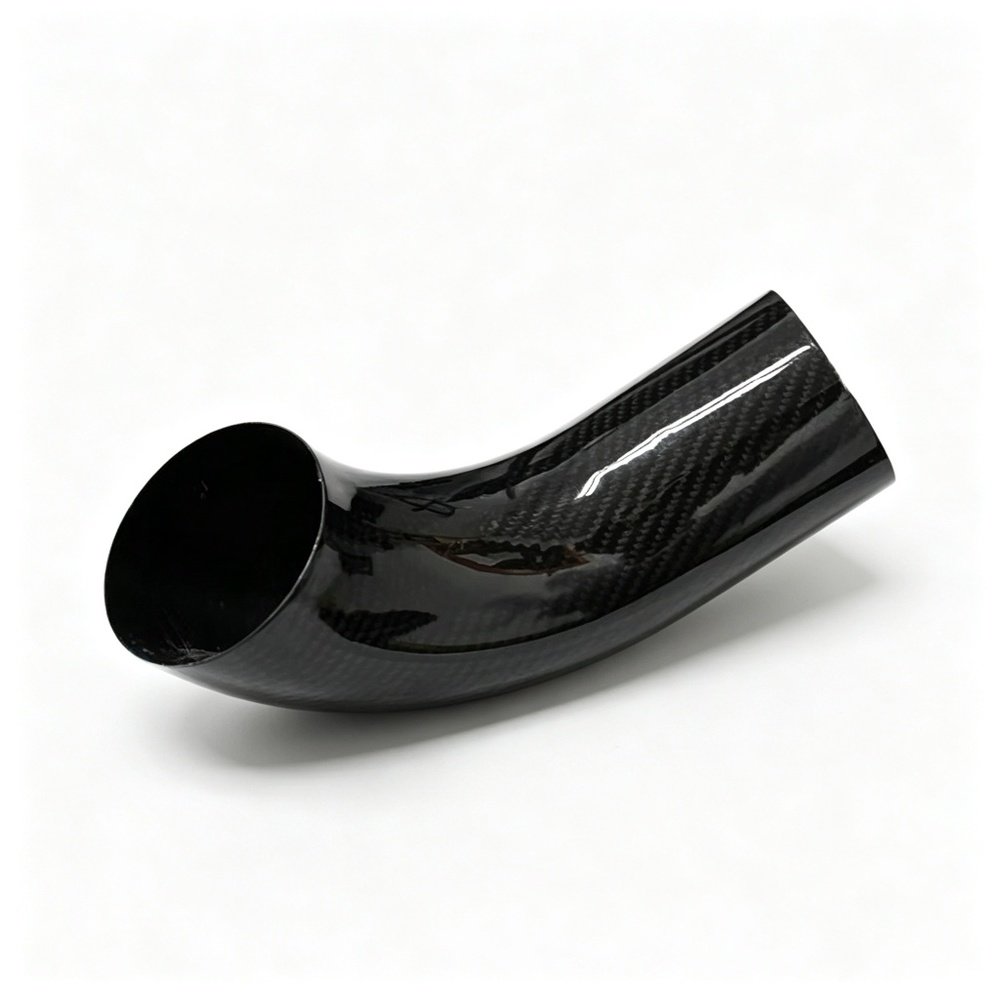

Our custom carbon fiber elbow tubes are engineered for applications requiring lightweight construction, high stiffness, corrosion resistance, and a streamlined appearance. Featuring a curved tubular design and a premium glossy carbon fiber finish, these composite elbow tubes provide a practical solution for connecting angled sections in custom assemblies where conventional metal components may add unnecessary weight.

Manufactured using advanced carbon fiber composite forming techniques, our carbon fiber bent tubes can be customized in terms of bend angle, tube diameter, wall thickness, overall length, curvature, and surface finish. The smooth curved profile supports space-efficient installation and can be designed for structural, protective, or fluid- and air-routing applications, depending on the composite construction and performance requirements.

As an OEM/ODM manufacturer, Grancen provides custom carbon fiber elbow pipes, bent carbon fiber tubes, and composite elbow connectors based on customer drawings, 3D CAD files, or physical samples.

Product Features and Benefits

• Lightweight Composite Construction: Carbon fiber reinforced polymer (CFRP) offers a high strength-to-weight ratio for weight-sensitive assemblies.
• Custom Bend Geometry: Bend angle, centerline radius, tube diameter, and overall dimensions can be tailored to your design.
• Premium Carbon Fiber Appearance: Choose a visible woven carbon fiber pattern with a glossy or matte finish.
• Corrosion Resistance: The composite structure is suitable for many environments where corrosion resistance is important, subject to resin and chemical compatibility.
• Custom Wall Thickness: Reinforcement layers and wall construction can be adjusted to meet specified stiffness and loading requirements.
• Precision-Machined Ends: Tube ends can be cut, trimmed, or finished to improve dimensional consistency and assembly fit.
• OEM/ODM Flexibility: Custom dimensions, fiber grades, resin systems, and surface treatments are available for project-specific requirements.

Materials and Manufacturing Processes

1. Carbon Fiber Reinforced Polymer (CFRP)

Our carbon fiber elbow tubes can be manufactured using carbon fiber reinforcement combined with a suitable resin system, such as epoxy, according to the intended application.

Available reinforcement options may include:

• 3K woven carbon fiber for a distinctive surface appearance
• T300 carbon fiber for general composite applications
• T700 carbon fiber for selected applications requiring higher fiber tensile performance
• Unidirectional carbon fiber layers for directional reinforcement
• Hybrid carbon fiber and fiberglass constructions for selected performance and cost requirements

The final mechanical properties depend on the fiber grade, fiber orientation, resin system, layup design, curing conditions, and tube geometry.

2. Composite Layup and Curved Mandrel Forming

For custom bent carbon fiber tubes, reinforcement layers are arranged around a curved mandrel or formed using a suitable matched mold. Fiber orientation and layer distribution are designed according to the required bend geometry and structural performance.

3. Resin Impregnation and Curing

Prepreg or resin-impregnated carbon fiber layers are consolidated and cured under controlled conditions. Appropriate process control helps maintain the tube’s shape, surface quality, and laminate integrity.

4. Trimming and CNC Machining

After molding and curing, the tube ends can be trimmed to the specified length and angle. CNC cutting, drilling, and selected machining operations can be applied where required for installation holes, connectors, and mounting features.

5. Surface Finishing

Available finishes include glossy carbon fiber weave, matte carbon fiber, painted surfaces, and other customized cosmetic treatments. Surface finishing can be selected to meet the appearance and environmental requirements of the final product.

6. Quality Inspection

Inspection can include bend angle, outer diameter, wall thickness, end geometry, surface appearance, and dimensional conformity to customer drawings. Additional mechanical or pressure testing can be arranged when required by the application.

Applications of Custom Carbon Fiber Elbow Tubes

Our OEM carbon fiber bent tubes can be developed for various industrial and commercial applications, including:

• Automotive and Motorsport: Lightweight air ducts, intake routing components, protective covers, and custom composite assemblies.
• Drones and Robotics: Curved structural connectors, lightweight frame components, and equipment supports.
• Industrial Equipment: Custom tubular structures, protective housings, and lightweight machine components.
• Marine Equipment: Selected lightweight composite tubing applications requiring corrosion resistance.
• Sporting Goods: Custom curved tubes and lightweight structural components for specialized sports equipment.
• Air and Fluid Routing: Custom ducts or tubing for compatible fluids and operating conditions, subject to resin compatibility, pressure rating, temperature limits, and leak testing.

For pressure-bearing or safety-critical applications, the tube design and manufacturing process must be validated against the actual operating conditions before use.

OEM/ODM Custom Carbon Fiber Elbow Tube Manufacturing

At Grancen, we support custom composite component development from prototype sampling to production orders. Our manufacturing service is designed for equipment manufacturers, automotive suppliers, sporting goods brands, and industrial product developers seeking application-specific carbon fiber solutions.

You can provide a 2D drawing, 3D STEP file, physical sample, or preliminary specification. Our team can review the design and help determine suitable materials, bend geometry, manufacturing methods, and finishing options.

Customization Options

• Bend Angle: 30°, 45°, 60°, 90°, or custom angles, subject to design feasibility
• Tube Diameter: Custom outer and inner diameters
• Bend Radius: Customized centerline radius and curvature
• Wall Thickness: Designed according to stiffness and loading requirements
• Tube Length: Custom overall length and end geometry
• Material: Carbon fiber, fiberglass, or hybrid composites
• Surface Finish: Glossy, matte, visible carbon weave, or painted
• End Features: Custom trimming, holes, slots, and selected mounting interfaces
• Production Service: Prototype development, small-batch manufacturing, and OEM/ODM productionIf you are sourcing a custom carbon fiber elbow tube, bent carbon fiber pipe, or OEM carbon fiber composite connector, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
