Custom Carbon Fiber Tubes

Custom Carbon Fiber Tubes

–OEM/ODM Carbon Fiber Tube Manufacturer

    Our custom carbon fiber tubes are engineered for applications requiring a high strength-to-weight ratio, excellent stiffness, dimensional stability, and a professional surface finish. Available in multiple diameters, wall thicknesses, cross-sectional shapes, and lengths, these lightweight composite tubes provide versatile structural solutions for industrial equipment, robotics, drones, sporting goods, and precision mechanical assemblies.

As an OEM/ODM custom parts manufacturer, we support the development of round, square, rectangular, oval, triangular, hexagonal, and other custom-shaped carbon fiber tubes. From standard round tubes to complex profiles with precision-machined mounting holes, we can tailor tube dimensions and construction to your drawings, samples, and application requirements.

Whether you need carbon fiber tubing for lightweight structural frames, telescopic assemblies, equipment supports, or custom composite components, our manufacturing solutions help you achieve the right balance of weight, strength, rigidity, and cost.

High-Performance Carbon Fiber Tube Materials

Our carbon fiber tubes can be manufactured using different carbon fiber grades and composite layup configurations to meet specific mechanical and environmental requirements.

• Standard Carbon Fiber: Suitable for general-purpose lightweight structural components.

• 3K Carbon Fiber: Features a distinctive woven surface and is popular for visible components and premium sporting goods.

• T300 Carbon Fiber: A versatile option for general structural applications requiring a balance of mechanical performance and cost.

• T700 Carbon Fiber: Suitable for applications requiring enhanced tensile performance, subject to the selected composite construction.

• 12K and 18K Carbon Fiber: Available for selected tube constructions where fiber architecture, appearance, and structural requirements call for these configurations.

• Carbon Fiber and Fiberglass Hybrid: Combines selected properties of both reinforcement materials for application-specific designs.

The final mechanical performance depends on fiber grade, fiber orientation, resin system, wall thickness, manufacturing method, and quality control. We can help select a suitable construction based on your load requirements and intended use.

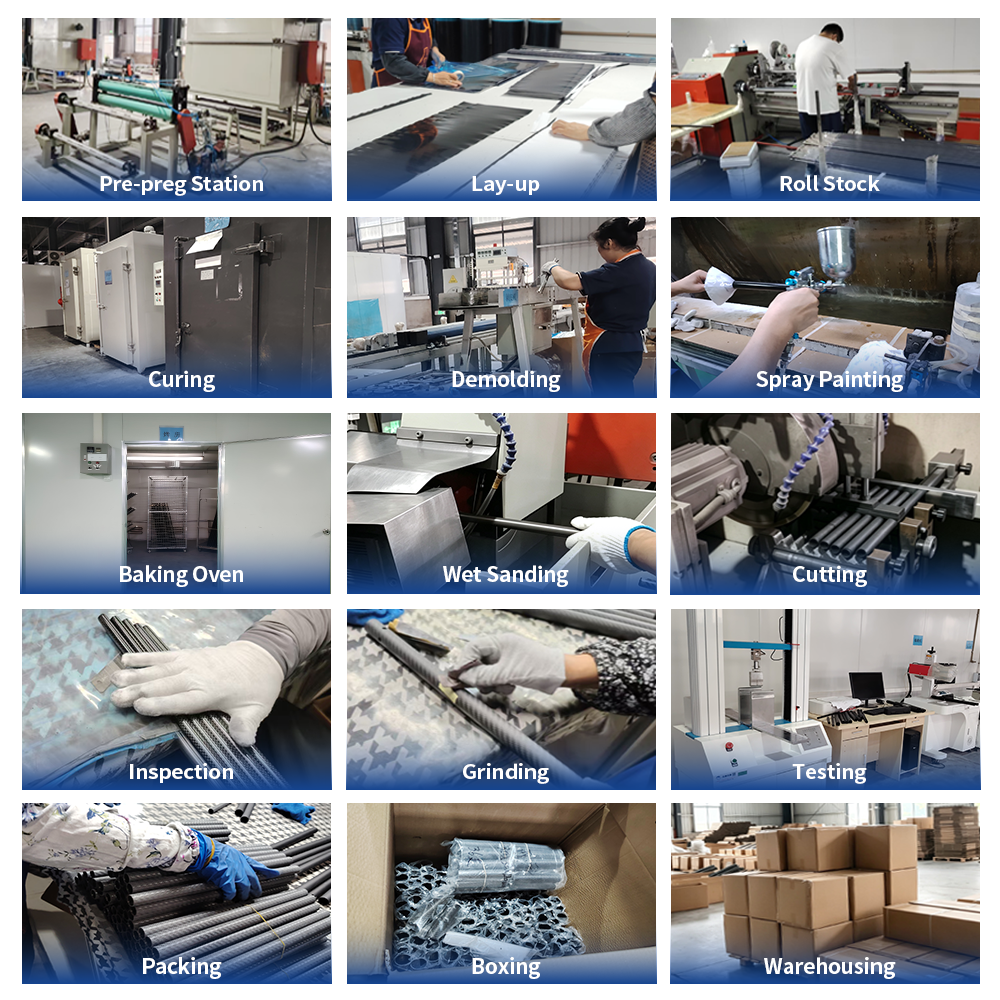

Carbon Fiber Tube Manufacturing Processes

Our custom carbon fiber tubing solutions can incorporate the following manufacturing processes, depending on the design and production requirements.

1. Composite Layup and Tube Forming

Carbon fiber reinforcement is arranged around a mandrel or forming tool in specified orientations. The layup can be tailored to achieve the required balance of axial strength, torsional rigidity, and bending stiffness.

2. Roll Wrapping and Resin Curing

For roll-wrapped carbon fiber tubes, prepreg or resin-impregnated reinforcement layers are wrapped around a mandrel and consolidated through a controlled curing process. This method is suitable for producing custom round tubes and selected profiles with controlled wall construction.

3. Pultrusion

For suitable straight-profile applications, pultrusion continuously draws reinforcing fibers through a resin system and heated forming die. This process is particularly useful for consistent cross-sections and repeat production.

4. CNC Cutting and Precision Machining

CNC cutting, drilling, end trimming, and selected milling operations can be used to achieve specified lengths, mounting holes, slots, and connection features. Proper tooling and dust extraction help control composite dust and reduce edge damage.

5. Surface Finishing

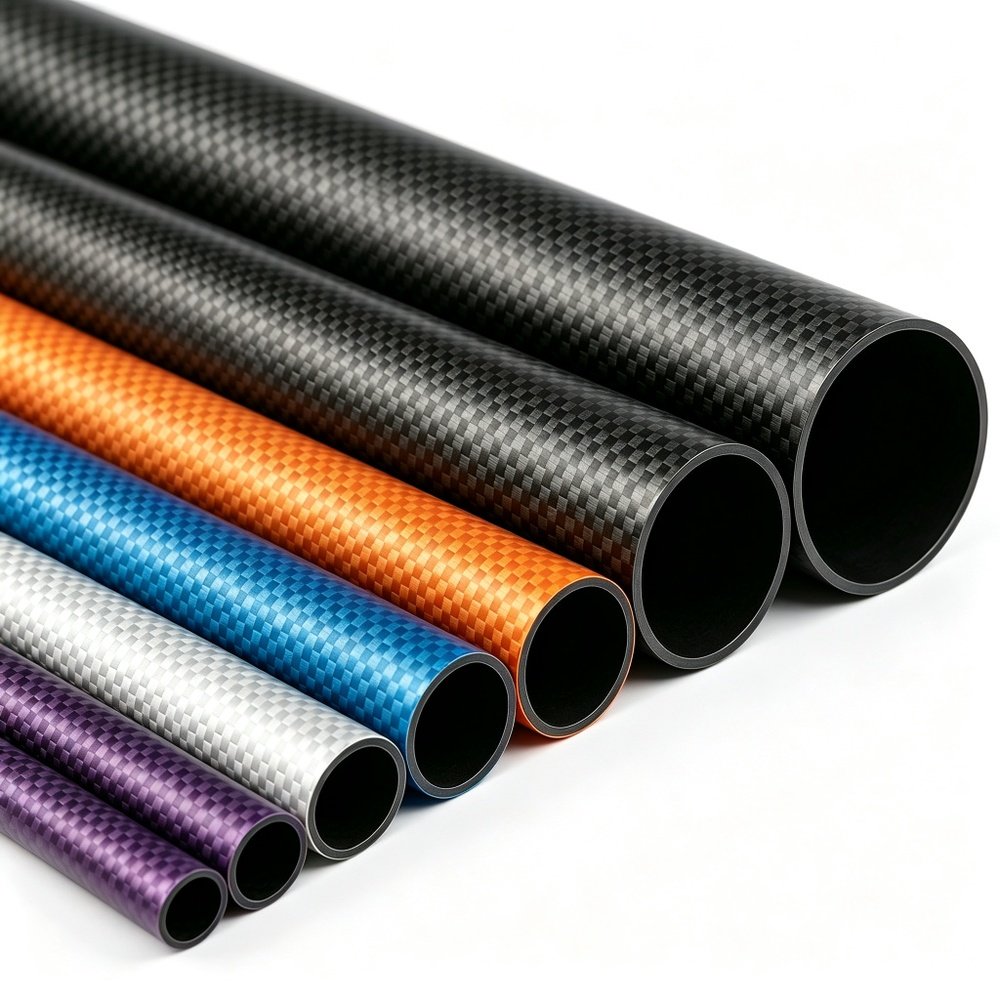

Available finishes may include a visible 3K carbon fiber weave, matte finish, glossy finish, painted surfaces, or protective coatings. Surface options can be customized according to appearance, handling, and environmental requirements.

6. Dimensional and Quality Inspection

Inspection can cover outer diameter, inner diameter, wall thickness, length, straightness, hole positions, surface appearance, and other drawing-defined requirements. Additional mechanical testing can be arranged when specified.

Shape and Size Customization Options

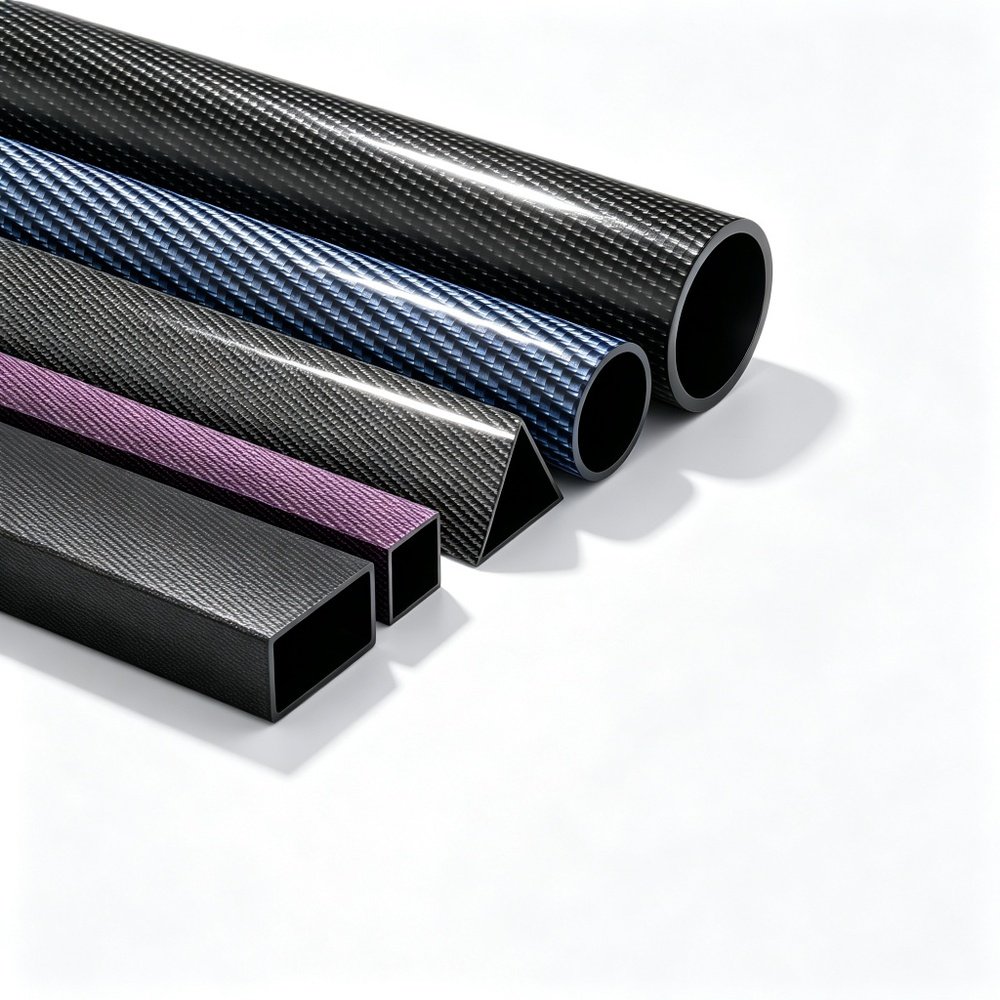

Our OEM carbon fiber tubes are available in a wide range of cross-sectional profiles to accommodate different installation spaces and structural requirements.

• Round carbon fiber tubes

• Square carbon fiber tubes

• Rectangular carbon fiber tubes

• Oval carbon fiber tubes

• Triangular carbon fiber tubes

• Hexagonal carbon fiber tubes

• Custom-shaped carbon fiber profiles

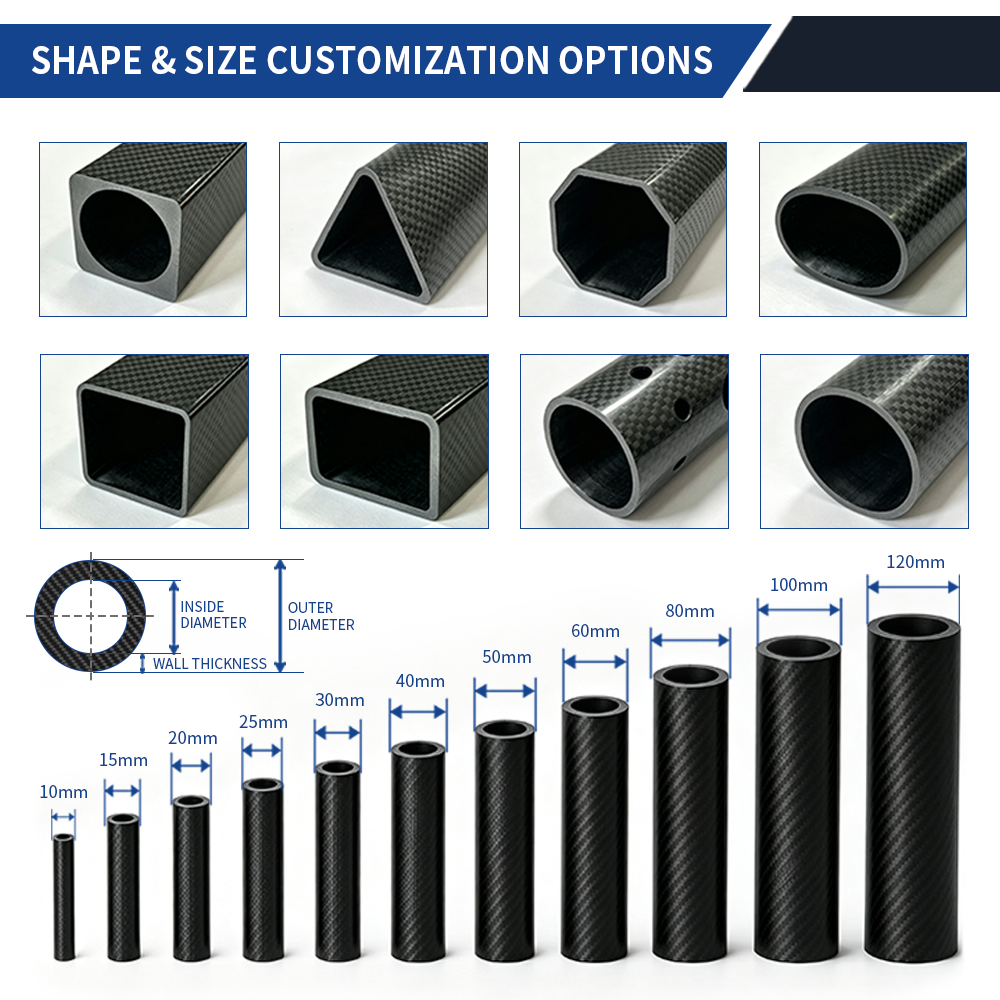

Outer diameters can be customized to suit your design. The reference image illustrates example round tube sizes ranging from 10 mm to 120 mm. Actual availability depends on the selected profile, manufacturing process, tooling, wall thickness, and required tolerances.

We can also customize inner diameter, wall thickness, tube length, hole patterns, end geometry, and connecting features according to your engineering drawings.

Applications of Custom Carbon Fiber Tubes

Lightweight and rigid carbon fiber tubing is widely used across industries where reducing component weight without compromising structural requirements is important.

Drones and UAVs

Lightweight structural arms, frame supports, booms, and custom mounting tubes for unmanned aerial vehicles.

Robotics and Automation

Robot arm structures, linear-motion assemblies, lightweight linkages, and equipment support components.

Industrial Equipment and Telescopic Systems

Support poles, positioning assemblies, inspection equipment, and lightweight structural frameworks.

Sporting Goods and Outdoor Equipment

Bicycle components, sports equipment, fishing equipment, and other weight-sensitive products.

Other potential applications include automotive components, marine equipment, measurement instruments, custom fixtures, and industrial machinery, subject to the tube’s design and performance specifications.

OEM/ODM Custom Carbon Fiber Tube Manufacturing

At Grancen, we support custom manufacturing projects from prototype development to batch and volume production. Our goal is to provide carbon fiber tube solutions that match your design, application, and target market.

You can submit a 2D drawing, 3D CAD file, physical sample, or preliminary specification for evaluation. Our team can assist with material selection, tube construction, dimensional planning, machining requirements, and production feasibility.

Our Customization Capabilities

• Material selection: Carbon fiber, fiberglass, or hybrid composite constructions.

• Shape customization: Round, square, rectangular, oval, polygonal, and special profiles.

• Dimensional customization: Outer diameter, inner diameter, wall thickness, and length.

• CNC machining: Custom holes, slots, end cuts, and selected mounting features.

• Surface customization: 3K weave, matte, glossy, painted, and other agreed finishes.

• Prototype development: Sample manufacturing for design and fit verification.

• OEM/ODM production: Customized components for equipment manufacturers, distributors, and private-label brands.

Frequently Asked Questions

Q1: Can you manufacture carbon fiber tubes according to our drawings?

Yes. We support custom carbon fiber tube manufacturing based on 2D drawings, 3D CAD files, or physical samples, subject to technical review.

Q2: Can you supply carbon fiber tubes in different shapes and sizes?

Yes. Round, square, rectangular, oval, triangular, hexagonal, and selected custom profiles can be evaluated. Diameter, wall thickness, and length are customized according to the design.

Q3: Can you machine holes or slots in carbon fiber tubes?

Yes. CNC drilling, cutting, end trimming, and selected milling operations are available where the tube construction permits. Hole locations and edge quality should be defined in the drawing.

Q4: Which carbon fiber grade should I choose?

The choice depends on stiffness, tensile loading, impact requirements, weight targets, cost, and the intended manufacturing process. We can review your requirements and recommend a suitable material and layup configuration.

Q5: Do you offer OEM and ODM services?

Yes. We support custom specifications, surface finishes, prototype samples, and production orders for industrial customers and sporting goods brands.

Request a Quote for Custom Carbon Fiber Tubes

If you are sourcing custom carbon fiber tubes, CNC-machined composite tubing, or OEM carbon fiber structural components, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations
