Grid Knurling Knob

Grid Knurling Knob

– Precision CNC Machined Diamond Knurled Control Knob for Enhanced Grip

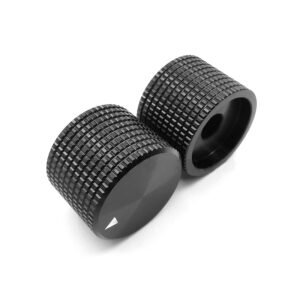

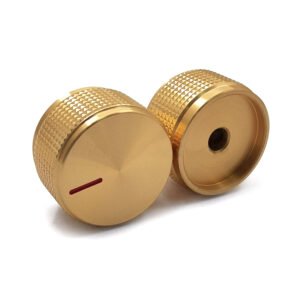

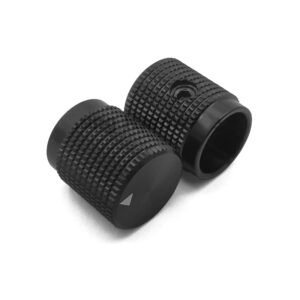

     The  Grid Knurling Knob, a premium control component featuring a diamond (cross) knurled pattern for superior grip and precise manual adjustment. Designed for both industrial and consumer applications, this knob ensures excellent anti-slip performance, even in oily or high-vibration environments.

Manufactured using advanced CNC turning and precision knurling technology, the grid knurling knob delivers consistent texture, tight tolerances, and long-lasting durability. Available in aluminum alloy, stainless steel, or brass, it combines strength, corrosion resistance, and aesthetic appeal for high-end applications.

With customizable dimensions, finishes, and mounting options, this knob is ideal for control panels, instrumentation, machinery, and electronic devices requiring reliable and ergonomic operation.

Key Features

• Diamond Knurl Pattern: Cross knurling for maximum grip and control
• High Precision Machining: Tight tolerances ensure perfect fit and smooth rotation
• Durable & Wear-Resistant: Built for long-term industrial use
• Ergonomic Design: Comfortable handling with consistent torque feedback
• Corrosion Resistant Materials: Suitable for harsh environments
• Customizable Options: Sizes, threads, colors, and finishes available

Applications

• Industrial control panels and machinery
• CNC equipment and automation systems
• Audio and electronic devices
• Laboratory and measuring instruments
• Consumer products and hardware assemblies

Manufacturing Process

• CNC Precision Turning (profile shaping and outer diameter machining)
• Diamond Knurling (grid pattern formation using precision tooling)
• Drilling & Boring (internal hole creation)
• Thread Tapping (internal threads or mounting features)
• Deburring & Polishing (surface refinement)
• Surface Treatment (anodizing, electroplating, or coating)
• Laser Marking (optional logos or scale indicators)
• Final Inspection (dimensional accuracy and surface quality control)

Tolerance & Dimensions

• Outer Diameter Tolerance: ±0.02–0.05 mm
• Bore Diameter Tolerance: H7 / ±0.01–0.02 mm
• Knurl Pitch Consistency: High precision for uniform grip pattern
• Concentricity: ≤0.02 mm
• Surface Roughness (Non-Knurled Areas): Ra ≤ 1.6 μm
• Dimensional Tolerance: ±0.02–0.05 mm

OEM / ODM Manufacturing Capability

As a professional OEM/ODM manufacturer, we specialize in precision CNC machined hardware components with advanced knurling capabilities. We provide fully customized knob solutions tailored to your product design and functional requirements.

• Custom diameters, heights, and knurl patterns
• Thread types and mounting configurations
• Material selection for strength and corrosion resistance
• Surface finishing options (anodizing, plating, custom colors)
• Logo engraving and branding services
• Rapid prototyping and mass production

If you are sourcing a “Grid Knurling Knob”,diamond knurled knob, CNC control knob, metal adjustment knob, aluminum knurled knob, precision knob OEM, industrial control knob, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations
