Flange Trapezoidal T8 Screw Brass Nut

Flange Trapezoidal T8 Screw Brass Nut

Precision Brass Flange Nut for CNC & 3D Printer Linear Motion Systems

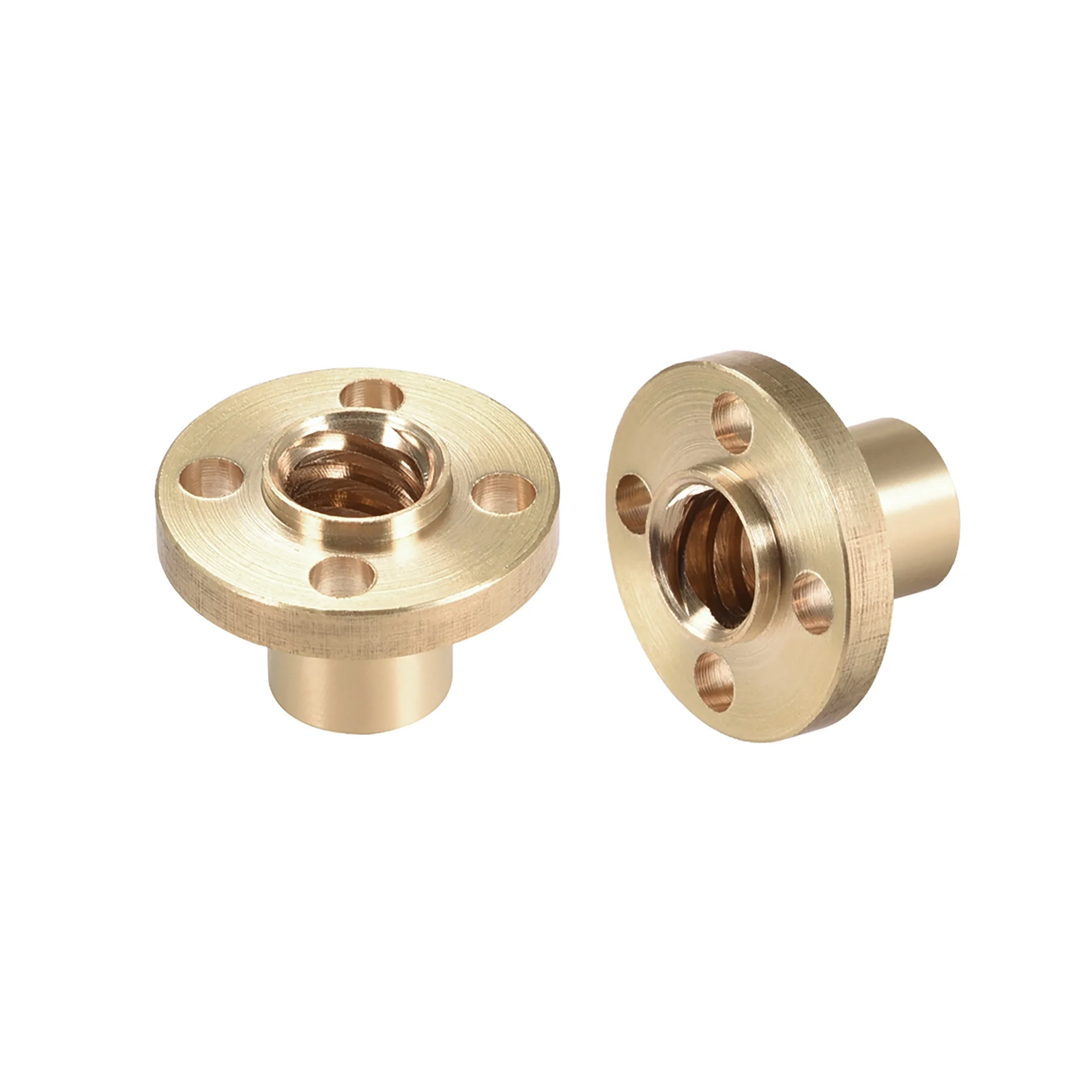

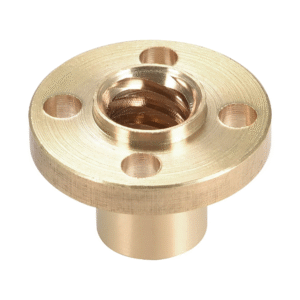

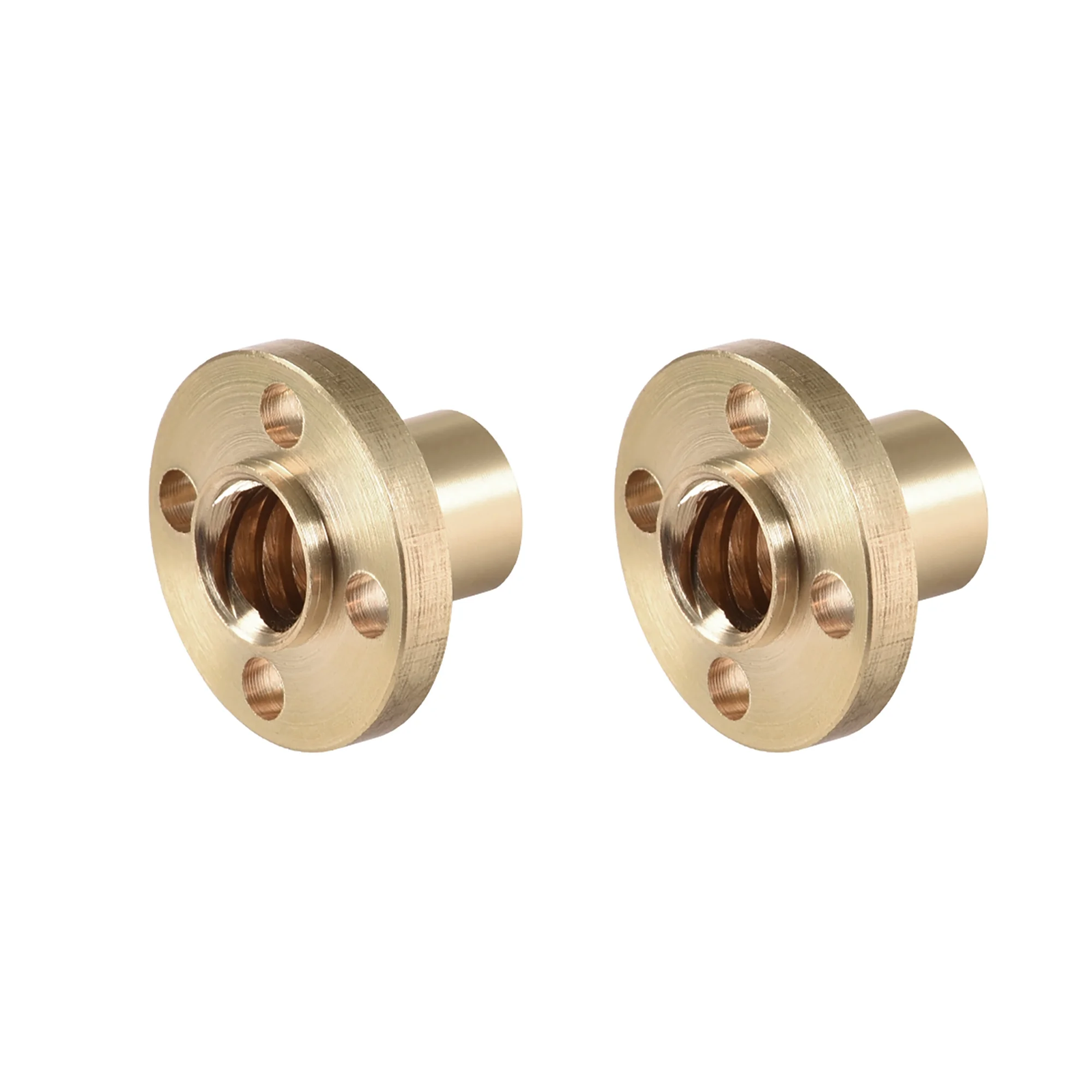

    Flange Trapezoidal T8 Screw Brass Nut is a high-precision transmission component designed for smooth, stable, and low-backlash linear motion. Manufactured from high-quality brass and engineered specifically for T8 trapezoidal lead screws (8 mm diameter), this flange nut is widely used in 3D printers, CNC machines, engraving machines, and automated motion systems.

With its integrated flange design, the nut provides secure mounting, improved alignment, and enhanced load distribution, helping to reduce vibration and wear during operation. The self-lubricating properties of brass further ensure quiet running and long service life in precision applications.

Material & Manufacturing Process

This T8 brass flange nut is produced using precision CNC turning and threading processes, ensuring accurate internal trapezoidal threads and consistent dimensional tolerances. Key manufacturing steps include:

• CNC Turning for precise outer diameter and flange geometry

• Trapezoidal Thread Cutting (T8) for smooth lead screw engagement

• Secondary Drilling for evenly spaced mounting holes on the flange

• Surface Finishing & Deburring to ensure smooth contact surfaces and reliable performance

Each unit is inspected to guarantee thread accuracy, concentricity, and stable fit with standard T8 lead screws.

Applications

• 3D printers (Z-axis and linear motion systems)

• CNC routers and milling machines

• Laser engraving and cutting machines

• Automated equipment and linear actuator systems

• DIY motion control and robotics projects

Key Advantages

• Stable flange structure for easy installation

• Smooth motion with minimal backlash

• Excellent wear resistance and corrosion resistance

• Ideal balance of strength, precision, and cost

• Compatible with standard T8 trapezoidal lead screws

OEM / ODM Manufacturing Support

As a professional OEM/ODM manufacturer, we specialize in producing custom brass nuts and precision machined components for global markets. We support custom dimensions, thread types, tolerances, surface finishes, and packaging based on your technical drawings or samples. Our stable production capacity and strict quality control ensure consistent performance for both small batches and large-volume orders.

If you are sourcing a “Flange Trapezoidal T8 Screw Brass Nut”, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
