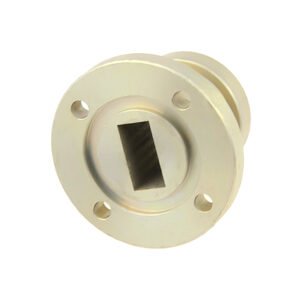

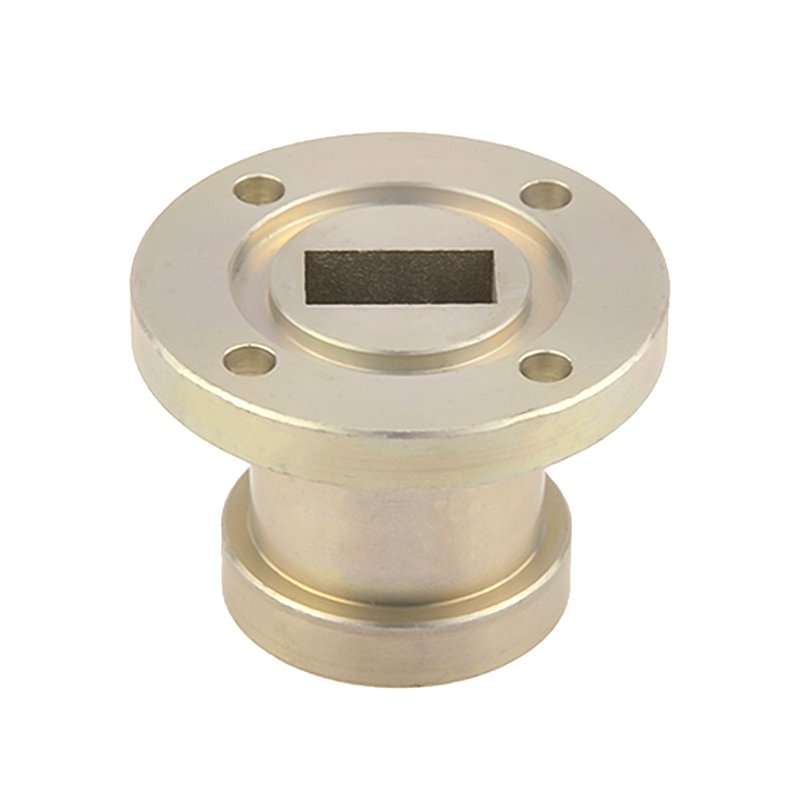

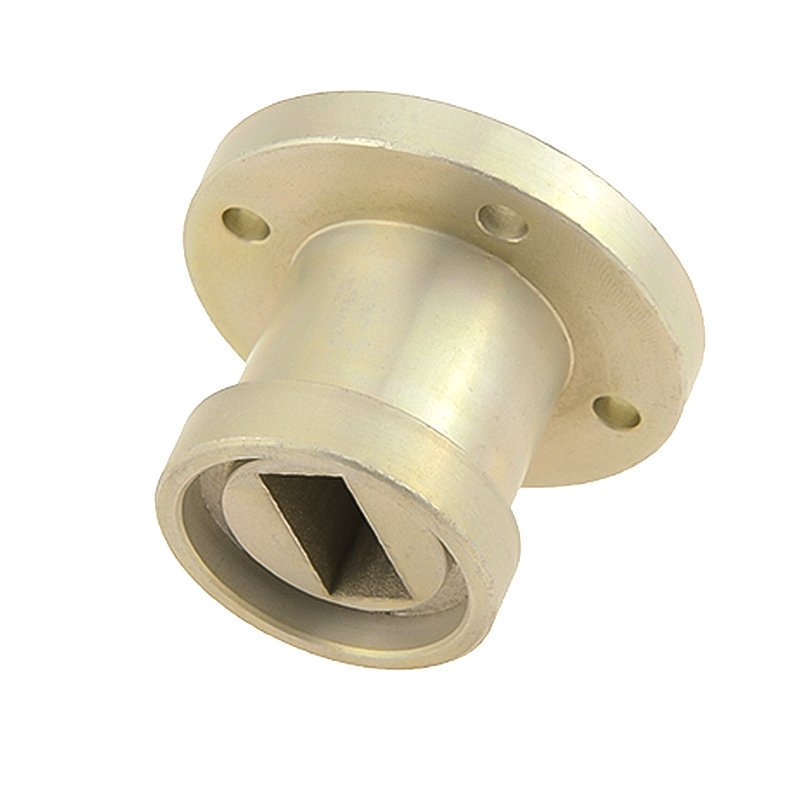

      Waveguide Flange Adapter is a high-precision machined metal component designed to connect waveguide interfaces with maximum signal integrity and minimal transmission loss. Featuring a circular mounting flange with precision bolt holes and a rectangular internal waveguide aperture, this adapter ensures accurate alignment and stable mechanical connection in high-frequency systems.

Engineered for RF and microwave applications, the adapter plays a critical role in maintaining consistent impedance and low insertion loss when interfacing different waveguide components or transitioning between systems. Its robust structure and tight machining tolerances make it suitable for demanding industrial, aerospace, and communication environments.

Material & Manufacturing Process

This waveguide flange adapter is manufactured from premium metal alloys such as copper alloy, aluminum, or stainless steel, selected according to electrical, thermal, and environmental requirements.

The production process includes:

• CNC Precision Turning for the flange body and stepped cylindrical profile

• CNC Milling for the rectangular waveguide aperture and mounting features

• Precision Drilling of bolt holes to ensure accurate flange alignment

• Surface Finishing such as polishing, anodizing, or passivation (optional)

• Dimensional & RF Quality Inspection to ensure consistency and performance

Advanced CNC machining guarantees excellent dimensional accuracy, smooth internal surfaces, and reliable repeatability for both prototypes and volume production.

Applications

• RF and microwave communication systems

• Radar and satellite equipment

• Waveguide transmission assemblies

• Aerospace and defense electronics

• Industrial RF testing and measurement devices

OEM / ODM Manufacturing Services

As an experienced OEM/ODM precision machining manufacturer, we specialize in customized waveguide components and flange adapters tailored to your technical specifications. We support custom waveguide standards, flange types, materials, surface treatments, and tolerances to meet your system design and performance requirements.

From design support and prototyping to large-scale production, our in-house CNC machining capabilities ensure consistent quality, competitive pricing, and reliable lead times.

If you are sourcing a Waveguide Flange Adapter, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
