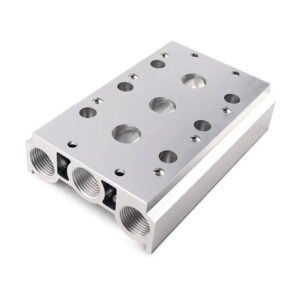

Pneumatic Valve Manifold Base

Pneumatic Valve Manifold Base

– Precision Aluminum Solution for Multi-Valve Air Distribution

        The Pneumatic Valve Manifold Base, engineered to efficiently organize and connect multiple solenoid valves into a single, compact unit. Designed for modern automation systems, this manifold base allows multiple valves to share a common air supply, significantly reducing piping complexity, installation time, and potential leakage points.

Manufactured from high-quality aluminum alloy, this component offers excellent strength, corrosion resistance, and dimensional stability. Its precision-machined internal channels ensure smooth and consistent air distribution, enabling reliable pressure transmission across all connected valves. Ideal for industrial automation, this manifold base improves system efficiency while maintaining a clean and organized layout.

Key Features

• Centralized Air Distribution: Enables multiple valves to share a single air source
• Leak Reduction Design: Minimizes fittings and connection points
• High-Strength Aluminum Alloy: Lightweight, durable, and corrosion-resistant
• Precision Machined Channels: Ensures stable and efficient airflow
• Compact & Modular Structure: Optimizes system layout and saves installation space
• Flexible Configuration: Supports various valve quantities and arrangements

Applications

• Industrial automation systems
• Pneumatic control panels
• Manufacturing and assembly lines
• Robotics and motion control systems
• Packaging, printing, and processing equipment

Manufacturing Process

• CNC Milling & Drilling (for internal air channels and mounting interfaces)
• Precision Surface Machining
• Thread Tapping for valve and port connections
• Deburring and Cleaning
• Surface Treatment (Anodizing or Anti-Corrosion Coating)
• Air Tightness Testing & Quality Inspection

OEM / ODM Manufacturing Capability

As a professional OEM/ODM manufacturer, we specialize in high-precision CNC machined components for industrial automation and fluid control systems. With advanced machining capabilities and strict quality standards, we provide customized manifold solutions tailored to your specific system requirements.

• Custom port design and internal channel layout
• Flexible size and valve configuration options
• Surface treatments: anodizing, plating, coating
• Rapid prototyping and mass production
• Full quality control including air tightness testing

If you are sourcing a “Pneumatic Valve Manifold Base”, pneumatic valve manifold base, solenoid valve manifold block, aluminum air manifold, pneumatic distribution block, CNC machined manifold base, multi valve air supply block, automation pneumatic components OEMwe offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
