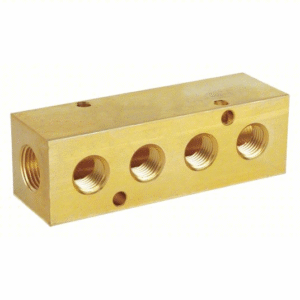

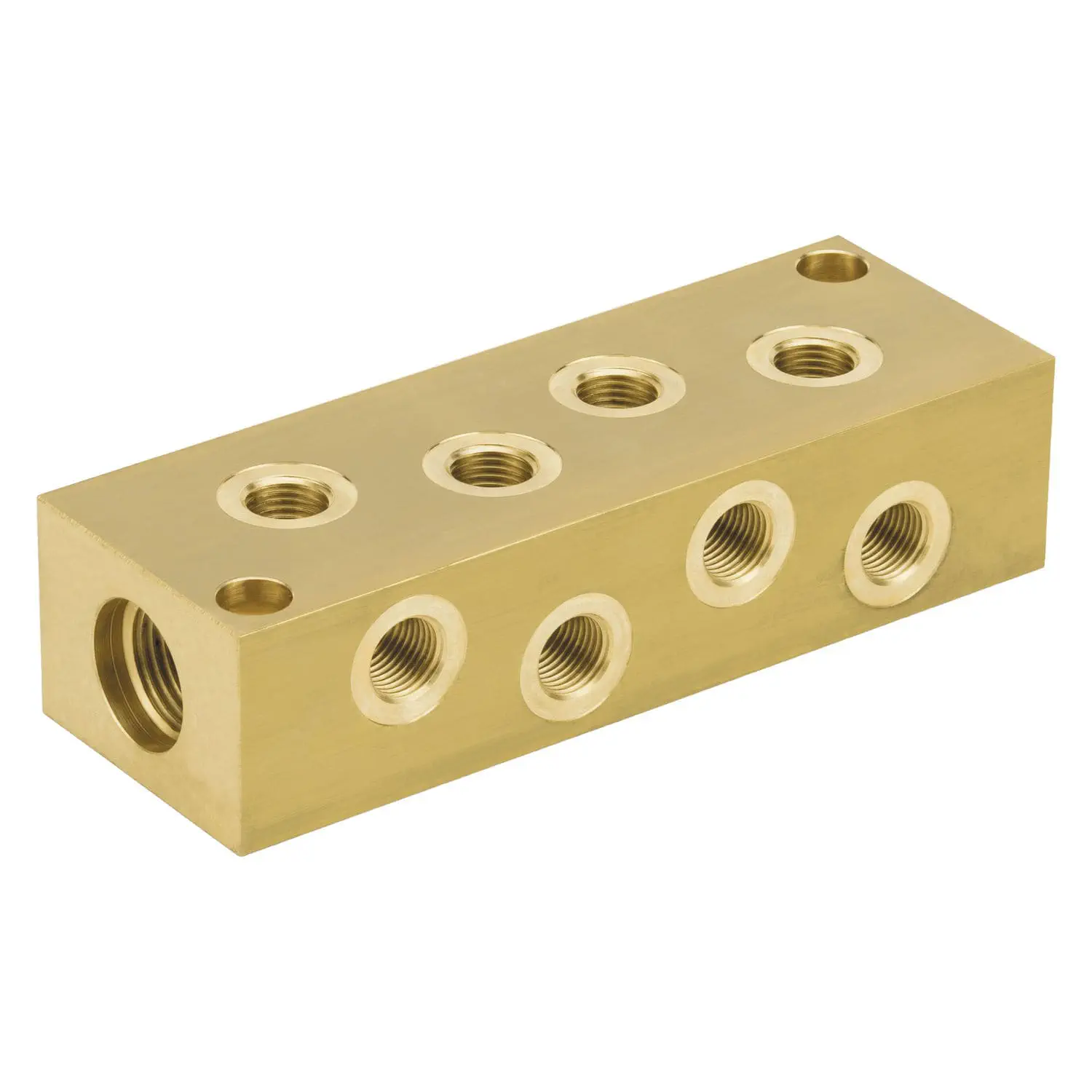

Brass Manifold Block for Gas & Fluid Distribution

Brass Manifold Block for Gas & Fluid Distribution

Precision CNC Machined Brass Manifold with Threaded Ports

     Brass Manifold Block is a compact and reliable solution designed to distribute gas or liquid flow efficiently within pneumatic, hydraulic, and fluid control systems. Featuring multiple threaded ports and mounting holes, it enables flexible system layout while ensuring stable, leak-resistant performance.

Manufactured from high-quality brass and finished with precision CNC machining, this manifold offers excellent corrosion resistance, mechanical strength, and long-term durability, even in demanding operating environments.

Material & Manufacturing Process

Each brass manifold is produced through a series of tightly controlled precision machining processes to guarantee dimensional accuracy and consistent performance:

• CNC Milling – forms the rectangular manifold body with flat, precise mounting surfaces

• CNC Drilling – creates internal flow channels and mounting holes

• CNC Tapping / Thread Cutting – produces accurate threaded ports for secure pipe or fitting connections

• Internal Deburring & Cleaning – ensures smooth flow paths and minimizes pressure loss

• Surface Finishing / Polishing – enhances corrosion resistance and appearance

• 100% Inspection – checks thread accuracy, port alignment, and overall quality

Applications

• Pneumatic systems (compressed air distribution)

• Hydraulic oil distribution systems

• Water and general fluid control systems

• Automation equipment and machinery

• Industrial OEM assemblies and custom fluid solutions

Product Advantages

• Precision-machined brass for corrosion resistance and strength

• Multiple threaded ports for efficient fluid or gas distribution

• Compact block design saves installation space

• Multiple mounting holes for flexible installation options

• Customizable port size, thread type, and layout

OEM / ODM Brass Manifold Manufacturer

As a professional OEM/ODM manufacturer of precision brass components, we specialize in CNC-machined manifold blocks, valve bodies, and custom fluid distribution parts. From prototype development to high-volume production, we support custom designs, port configurations, thread standards, surface treatments, and packaging to meet diverse industry requirements.

If you are sourcing a “Brass Manifold Block”, we offer reliable, precision-engineered solutions tailored to your market. Contact us now for OEM customization, samples, or bulk quotations.
